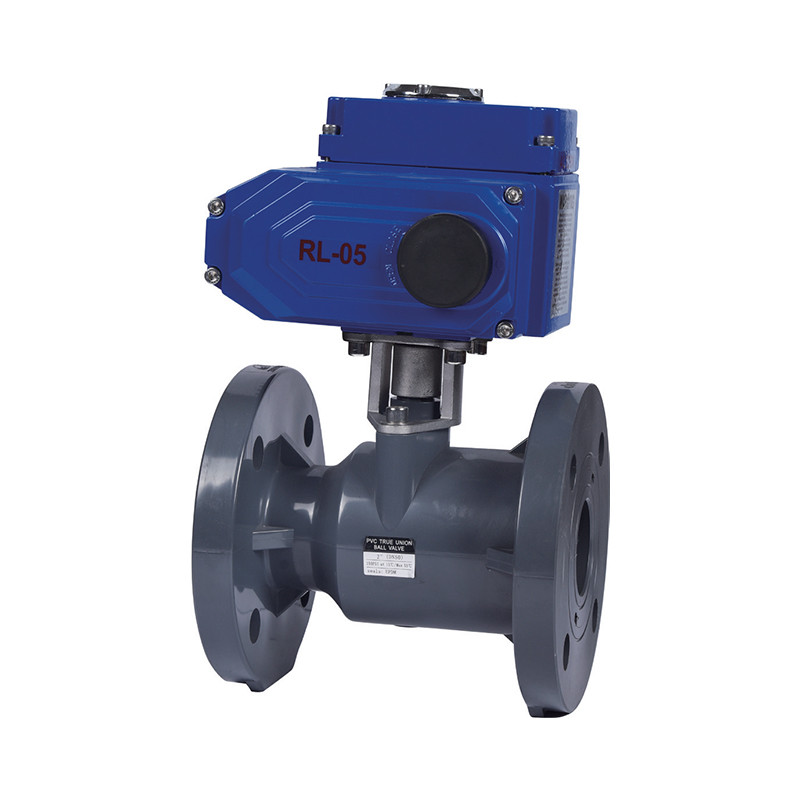

SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve

The defining feature of the electric flange ball valve is that its closure component (the ball) rotates around the stem’s axis, typically enabling valve opening or closing through a 90° rotation. It boasts sealing performance, high flow capacity, low flow resistance, simple structure, easy maintenance, and long service life. The valve body’s passage is of the same diameter as the connected pipeline, allowing the medium to flow through almost without loss. Therefore, it is often used in applications requiring stringent sealing, such as controlling gases, liquids, steam, and media containing fibrous impurities. electric flange ball valves are widely applied in industries like petroleum, chemicals, metallurgy, light industry, papermaking, power plants, and refrigeration. Particularly, they are commonly used as emergency shut-off valves in oil depots, chemical facilities, and gas tank pipelines. In emergencies, such as fires caused by oil or hazardous material leaks to power outages, the electric flange ball valve automatically shuts off without manual operation, effectively preventing secondary accidents, reducing property damage, and safeguarding personnel safety.

Hubungi kami

Sebelumnya：SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve
Berikutnya：SCH8O/DIN UPVC/CPVC Pneumatic Flange Ball Valve

parameter aplikasi Standar Teknis

(1) Material: UPVC, CPVC
(2) Size: 2"-12", DN50-DN300, dn63-dn315
(3) Standards: ANSI, DIN
(4) Connection: flange
(5) Work pressure: 150PSI, 1.0MPa
(6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
(7) Body color: UPVC (dark gray), CPVC (light gray)

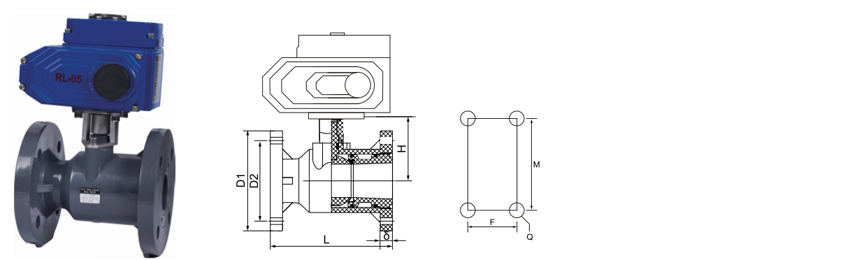

SIZE/NOM.		dn32	dn40	dn50	dn63	dn75	dn90	dn110	dn140	dn160
		(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)	(DN125)	(DN150)
		(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")	(5")	(6")
D1		115	140	145	165	180	195	220	250	285
D2	DIN	85	100	110	125	145	160	180	210	240
	ANSI	79	89	98	121	140	152	191	216	241
	JIS	42.5	48.5	61	73	90	105	132	158	186
N-Φ	DIN	4-Φ14	4-Φ18	4-Φ18	4-Φ18	4-Φ18	8-Φ18	8-Φ18	8-Φ18	8-Φ18
	ANSI	4-Φ16	4-Φ16	4-Φ16	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ22	8-Φ22
	JIS	4-Φ19	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ19	8-Φ19	8-Φ23	8-Φ23
δ		16	18	18	20	20	25	25	27	29
F		-	-	-	-	45	45	49	49	49
M		40	52	52	70	84	84	121	121	121
Q		2×M6	2×M8	2×M8	2×M8	4×M10	4×M10	4×M10	4×M10	4×M10
Torque (N ·M)		4	6	8	12	18	26	35

Electric actuator specifications

Ball valve	Model	Maximum output torque	Action time 90°		Output shaft	Motor	Rated current
Ball valve	Model	N·M	Special	Standard	mm	W	AC 220V/A	AC 380V/A	DC 24V/A
dn20-dn50	RL003	30	5-10	15	11*11	AC20 DC2	0.1	0.05	0.2
dn63-dn75	RL005	50	5-15	30	14*14	15	0.15	0.1	2
dn90	RL010	100	15/30/60	30	17*17	31	0.28	0.19	2.5
dn110	RL015	150	15/30/60	40	17*17	50	0.5	0.22	5
dn140	RL020	200	5/15/90	40	22*22	71	0.6	0.25	8.5
dn160	RL050	400	5/15/90	40	22*22	118	1	0.5	8.5

SCH80 / DIN · ELECTRIC · FLANGED

UPVC / CPVC Electric Flange Ball Valve

On-off · Modulating · Full port · Flanged ends · ISO 5211

The SCH80/DIN UPVC/CPVC Electric Flange Ball Valve is an automated flow control device engineered for remote on-off or modulating service in corrosive and high-purity fluid systems requiring flanged connections. Manufactured to ASTM SCH80 and DIN standards, this valve integrates an electric actuator with a flanged full-port ball valve body. The actuator is available in on-off (with limit switches) or modulating (with 4–20 mA positioner) configurations, providing precise control for process automation. The flanged ends comply with DIN PN10/PN16 or ANSI Class 150 drilling patterns, enabling direct integration into existing flanged piping systems without adapters. PTFE seats and seals deliver bubble-tight shut-off. The actuator mounting follows ISO 5211 standards. This valve is widely used in automated process control, chemical dosing, water treatment, and industrial manufacturing where electric actuation is preferred over pneumatic systems.

DN15–DN100 Size range

PN10–PN16 Pressure rating

–20°C to 93°C CPVC range

ISO 5211 Mounting pad

Flanged Connections

DIN PN10/PN16 or ANSI Class 150 flanges provide secure, leak-proof integration into existing piping systems without additional adapters.

Electric Actuation

On-off or modulating electric actuators enable remote control, process automation, and precise positioning without pneumatic supply.

Bubble-Tight Shut-Off

PTFE seats provide a reliable seal against the chrome-plated or solid CPVC ball, ensuring zero leakage across the full pressure range.

Chemical Resistance

UPVC and CPVC bodies resist acids, bases, and salts. CPVC extends service to 93°C for hot corrosive media.

Valve Specifications

Body UPVC · CPVC

Ball Chrome-plated brass · Solid CPVC

Seats PTFE · EPDM (optional)

Flange standard DIN PN10/PN16 · ANSI Class 150

Face-to-face DIN EN 558 Series 1

Standards ASTM D2467 · DIN 8061/8062 · ISO 16139

Actuator Data

Type On-off · Modulating

Supply voltage 24V · 110V · 230V AC/DC

Control signal On-off (limit switches) · 4–20 mA (modulating)

Mounting ISO 5211 · Direct mount

Protection IP65 · IP67 (optional)

Actuator sizing depends on valve torque and supply voltage. Consult factory for selection.

Application Areas

Chemical Automated acid dosing · Reactor feed · Transfer lines

Semiconductor UPW distribution · Chemical delivery · Wet bench

Energy Battery electrolyte · Cooling water · Solar etching

Water Wastewater · RO permeate · Desalination · Discharge

Pharma DI water loops · CIP systems · Sanitary lines

Automotive Paint circulation · Parts washing · Coolant

Installation Guidelines

Flange connections: Use full-face EPDM or PTFE gaskets. Torque bolts evenly in cross pattern to 15–20 Nm.
Actuator mounting: Ensure ISO 5211 mounting pad alignment. Use correct coupling and bracket.
Electrical connections: Verify voltage and wiring. Use conduit for protection. Ground actuator properly.
Orientation: Install with actuator in accessible position. For horizontal lines, stem should be vertical.
Control signal: For modulating valves, verify 4–20 mA loop wiring and polarity.
Testing: Cycle valve manually and electrically before placing in service.

Critical Restrictions

Temperature: UPVC 60°C max · CPVC 93°C max. Do not exceed seat and gasket ratings.
Supply voltage: Must match actuator rating. Voltage fluctuations may affect performance.
Not rated for steam service. Avoid rapid thermal cycling and pressure surges.
Do not use with concentrated nitric acid (>15%) in UPVC bodies.
Flange bolts: Do not overtighten — cracking risk above 22 Nm for DN80 .
UV exposure: Use UV-stabilized material or apply protective coating.
Actuator storage: Protect from moisture and debris. Store in clean, dry area.

Frequently Asked Questions

What flange standards are available?

The valve is available with DIN PN10/PN16 flanges (per DIN 2501) or ANSI Class 150 flanges. DIN flanges are standard for European and metric piping systems. ANSI flanges are available for North American and imperial systems. Specify the flange standard when ordering.

What is the difference between on-off and modulating actuators?

On-off actuators provide open or closed position only, controlled by a switch signal. Modulating actuators accept a continuous 4–20 mA signal and position the valve at any point between fully open and fully closed, enabling precise flow control.

What voltage options are available?

Actuators are available in 24V AC/DC, 110V AC, and 230V AC configurations. Select based on your control system and available power supply. 24V is common for PLC and DCS systems; 110V/230V are used for direct line power.

What protection rating is provided?

Standard actuators are IP65 rated, providing dust-tight and water-jet protection. IP67 rating is available for submersion resistance. Outdoor installations should use IP65 or higher with appropriate cable glands.

Can this valve be used for throttling control?

Yes, with a modulating actuator and 4–20 mA positioner. The electric actuator provides precise positioning, enabling accurate flow control. Throttling service may reduce seat life compared to on-off service.

Perusahaan

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group Ya Cina SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve Untuk industri makanan/otomotif/elektronik pemasok Dan dibuat khusus SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve Untuk industri makanan/otomotif/elektronik pabrik. Kami berdiri pada tahun 2007, dengan fokus pada penelitian dan pengembangan, produksi, penjualan, dan layanan pipa industri CPVC dan UPVC. Perusahaan telah memperoleh sejumlah sertifikasi, termasuk lisensi produksi peralatan khusus, lisensi higiene produk terkait air Provinsi Zhejiang, sertifikasi sistem manajemen mutu IS09001, sertifikasi sistem manajemen lingkungan IS014001, dan sertifikasi sistem manajemen kesehatan dan keselamatan kerja IS045001. Perusahaan memiliki lebih dari 50 hak kekayaan intelektual independen dan hak impor dan ekspor yang dioperasikan sendiri. Untuk menyediakan produk yang beragam dan layanan yang lebih baik, perusahaan telah memperkenalkan teknologi canggih, peralatan perkakas, dan bahan baku serta sistem manajemen yang unik dari Jerman dan Amerika Serikat. Selama bertahun-tahun, produk kami telah banyak digunakan dalam transportasi pipa cairan asam dan alkali, air ultramurni, air minum, air murni kelas elektronik, dan air limbah industri dalam industri kimia, metalurgi, fotovoltaik, tenaga nuklir, baterai litium, semikonduktor elektronik, makanan, obat-obatan, otomotif, pengolahan air industri, dan industri lainnya. Saat ini, ZHEYI Group telah mendirikan lebih dari 30 perusahaan penjualan di seluruh negeri, dan semua jenis produk diekspor ke Eropa, Amerika, Asia Tenggara, dan negara serta wilayah lain, dan sangat disukai oleh pelanggan dalam dan luar negeri.

Sertifikat Kehormatan

Berita

Double Containers Depart for South America – ZHEYI Group E...
Aug 31,2026
Recently, ZHEYI Group successfully completed the shipment of two full containers, both loaded and dispatched simultaneously, setting sail for the South American market. This milestone marks another step forward in our...
pelajari lebih lanjut
Future Trends in CPVC Piping Systems: What Industrial Buye...
Aug 26,2026
Tren masa depan dalam sistem perpipaan CPVC tidak hanya mengenai pipa itu sendiri. Hal tersebut berkaitan dengan spesifikasi tingkat sistem: data gabungan suhu tinggi yang lebih baik, katup yang siap diotomatisasi,...
pelajari lebih lanjut
Injection Molding Process for CPVC Fittings: From Resin to...
Aug 20,2026
Ketika kontraktor perpipaan membuka kotak siku CPVC di lokasi kerja pabrik kimia dan melihat beberapa bagian dengan permukaan agak kusam atau garis-garis samar, penyebabnya jarang sekali adalah bahan mentahnya. Ham...
pelajari lebih lanjut

Tinggalkan pesan

Kontrol kualitas yang ketat

Grup ZHEYI menganut prinsip "kualitas pertama", mengadopsi peralatan berteknologi tinggi internasional dan bahan baku berkualitas tinggi, mengontrol ketat setiap mata rantai produksi, dan berkomitmen untuk menyediakan produk pipa dengan kinerja luar biasa dan tampilan yang indah.

Perusahaan ini menggunakan peralatan produksi paling canggih dan bahan berkualitas tinggi, termasuk Sekisui dari Jepang dan Lubrizol dari Amerika Serikat. "ZHEYI" memadukan teknologi produksi yang luar biasa dengan manajemen profesional, dan setiap produk menjalani kontrol kualitas yang ketat - mulai dari produksi, inspeksi hingga pengiriman akhir, memastikan kombinasi sempurna antara tampilan dan fungsi.
Pengujian kinerja presisi

Di ZHEYI, setiap produk dibuat dengan sangat teliti, tidak hanya berfokus pada desain estetika yang indah, tetapi juga selalu berkomitmen pada kualitas intrinsik yang sangat baik. Pengujian kinerja yang ketat memastikan bahwa produk dapat mempertahankan stabilitas dan daya tahan bahkan dalam kondisi yang keras.:

● Pengujian kepadatan: Mengukur kepadatan material untuk memastikan keseragaman dan stabilitas struktur.
● Uji suhu pelunakan Vicat: mengevaluasi tingkat pelunakan bahan dalam kondisi suhu tinggi untuk memastikan kemampuan produk dalam menahan deformasi di berbagai lingkungan.
● Uji oven: mensimulasikan ketahanan panas jangka panjang dan memverifikasi kemampuan produk untuk menahan suhu tinggi dalam waktu lama.
● Uji hidrostatik: Mengevaluasi kekuatan pipa dalam kondisi tekanan tinggi untuk memastikan keamanan dan keandalan produk.
● Uji benturan palu jatuh: Uji ketahanan benturan produk selama pengangkutan, pemasangan, dan penggunaan sehari-hari.

SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve Pengetahuan industri

Application scenarios and advantages of electric flange ball valves in industrial automation systems

Electric flange ball valves play an important role in industrial automation systems due to their fast response, high sealing, remote control and other characteristics. The following are its typical applications and core advantages in multiple key industries:

1. Safe Drinking Water
Application: Used in water supply pipe networks, pump station switching and disinfection systems in water plants to ensure precise control of water flow.
Advantages: Electric drive can be integrated with SCADA system to achieve unattended adjustment and avoid water pollution risks.

2. Metallurgy
Application: Switching and regulation of high-temperature and high-pressure gases (such as blast furnace gas) and cooling water systems.
Advantages: Corrosion-resistant materials (such as stainless steel) can cope with strong acid and alkaline media, and the explosion-proof design of the actuator adapts to harsh environments.

3. Photovoltaic
Application: Chemical transportation (such as acid, inert gas) in silicon material production, and wastewater recovery systems.
Advantages: High sealing prevents harmful leakage, and electric control matches the rhythm of automated production lines.

4. Nuclear Power
Application: Isolation and discharge of nuclear island cooling system and radioactive wastewater treatment pipeline.
Advantage: Comply with nuclear safety standards (such as ASME III certification) and can be shut down in case of failure.

5. Electronic Semiconductor
Application: Precision delivery of ultrapure water (UPW) and special gases (such as nitrogen and argon).
Advantage: Polishing treatment of the inner wall of the valve body (Ra≤0.4μm) to avoid particle contamination and ensure process cleanliness.

6. Medicine
Application: Purified water, steam sterilization (SIP) and CIP cleaning systems in pharmaceutical processes.
Advantage: The dead-angle-free structural design meets GMP requirements and avoids the growth of microorganisms.

7. Industrial Water Treatment
Application: Circulating cooling water, reverse osmosis (RO) pretreatment and drug dosing control.
Advantage: Support Modbus/PROFIBUS communication and link with PLC to realize intelligent dosing.

8. Industrial Wastewater
Application: acid-base neutralization, switching and discharge of heavy metal wastewater treatment pipelines.
Advantages: PTFE seals are highly corrosion-resistant, and electric actuators can be programmed to meet intermittent discharge needs.
