SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve

UPVC/CPVC materials exhibit corrosion resistance, making them suitable for transporting various corrosive media such as acidic and alkaline solutions and chemical liquids. The UPVC/CPVC pneumatic ball valve features a compact structure, small footprint, and convenient installation and maintenance.

The valve’s opening and closing are controlled by a pneumatic device, offering easy and fast operation, suitable for industrial automation and remote control. High-quality sealing materials ensure good sealing performance when the valve is closed, preventing media leakage.

Hubungi kami

Sebelumnya：UPVC/CPVC Electric Driven Valves
Berikutnya：Filter Keranjang SCH8O/DIN UPVC/CPVC

parameter aplikasi Standar Teknis

(1) Material: UPVC, CPVC
(2) Dimensions: 1/2"- 4", DN15-DN100, DN20-DN110
(3) Standards: ANSI, DIN
(4) Connection: Socket
(5) Work pressure: 150PSI, 1.0MPa
(6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
(7) Minimum air pressure: 45PSI, 0.4MPa
(8) Body color: UPVC (dark gray), CPVC (light gray)

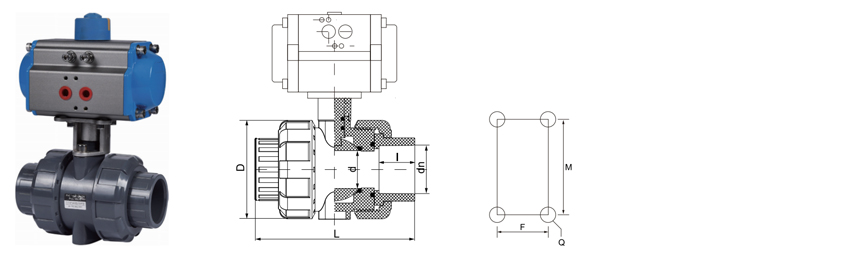

SIZE/NOM.		dn20	dn25	dn32	dn40	dn50	dn63	dn75	dn90	dn110
		(DN15)	(DN20)	(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)
		(1/2")	(3/4")	(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")
DIN ANSI JIS	I	22	22	25	28	31	38	44	51	61
	D	56	63	75	88	99	117	141	164	202
	L	103	117	133	149	165	190	235	270	320
	M	31	33	40	52	52	70	84	84	121
	F	-	-	-	-	-	-	45	45	49
	Q	2×M6	2×M6	2×M6	2×M8	2×M8	2×M8	4×M10	4×M10	4×M10
	Torque (N ·M)	2	3	4	6	8	12	18	26	35

Actuator working mode double-acting/single-acting (NC normally closed, NO normally open)

Specification	20	25	32	40	50	63	75	90	110
Specification	1/2"	3/4"	1"	11/4"	11/2"	2"	2 1/2"	3"	4"
Controlling stress	4~8
NAMUR standard air source interface	G 1/4"
Double acting actuator models	TBN032D	TBN032D	TBN032D	TBN052D	TBN052D	TBN63D	TBN75D	TBN83D	TBN92D
Single acting actuator models	TBN052SK	TBN052SK	TBN052SK	TBN063SK	TBN063SK	TBN75SK	TBN83SK	TBN92SK	TBN105SK

SCH80 / DIN · PNEUMATIC ACTUATED

UPVC / CPVC Pneumatic Ball Valve

Double-acting · Spring-return · Full port · PTFE seated

The SCH80/DIN UPVC/CPVC Pneumatic Ball Valve is an automated quarter-turn isolation valve designed for remote on-off and throttling control in corrosive and high-purity fluid systems. Manufactured to ASTM SCH80 and DIN standards, this valve integrates a pneumatic actuator with a one-piece or two-piece ball valve body. The actuator is available in double-acting or spring-return configurations, providing fail-safe positioning. The full port design maintains line flow characteristics with minimal pressure drop. The valve body is available in UPVC for general chemical service and CPVC for elevated temperatures up to 93°C. PTFE seats and seals deliver bubble-tight shut-off. The actuator mounting follows ISO 5211 standards, enabling direct mounting and easy replacement. This valve is widely used in automated process control, chemical dosing, water treatment, and industrial manufacturing systems.

DN15–DN100 Size range

PN10–PN16 Pressure rating

–20°C to 93°C CPVC range

ISO 5211 Mounting pad

Automated Operation

Double-acting or spring-return actuators enable remote control, process automation, and fail-safe positioning without operator intervention.

Bubble-Tight Shut-Off

PTFE seats provide a reliable seal against the chrome-plated or solid CPVC ball, ensuring zero leakage across the full pressure range.

Chemical Resistance

UPVC and CPVC bodies resist acids, bases, and salts. CPVC extends service to 93°C for hot corrosive media.

Full Port Flow

The ball bore matches the pipe internal diameter, providing unrestricted flow and minimizing pressure drop across the valve.

Valve Specifications

Body UPVC · CPVC

Ball Chrome-plated brass · Solid CPVC

Seats PTFE · EPDM (optional)

Connections Socket · Threaded · Flanged

Standards ASTM D2467 · DIN 8061/8062 · ISO 16139

Actuator Data

Type Double-acting · Spring-return

Supply pressure 4–8 bar

Mounting ISO 5211 · Direct mount

Rotation 90° · Adjustable stroke

Accessories Positioner · Limit switches · Solenoid

Application Areas

Chemical Automated acid dosing · Reactor feed control

Semiconductor UPW distribution · Chemical delivery systems

Energy Battery electrolyte · Cooling water control

Water Wastewater treatment · RO permeate control

Pharma DI water loops · CIP systems · Sanitary lines

Automotive Paint circulation · Parts washing · Coolant

Installation Guidelines

Actuator mounting: Ensure ISO 5211 mounting pad alignment. Use correct coupling and bracket.
Air supply: Filtered, lubricated air at 4–8 bar. Use solenoid valve for remote control.
Solvent welding: Use primer and cement specific to UPVC or CPVC. Allow full cure.
Flange bolts: Use full-face gaskets. Torque evenly to 15–20 Nm in cross pattern.
Electrical connections: Verify solenoid voltage and wiring. Use conduit for protection.
Testing: Cycle valve manually and pneumatically before placing in service.

Critical Limits

Temperature: UPVC 60°C max · CPVC 93°C max. Do not exceed seat rating.
Air pressure: Do not exceed 8 bar supply pressure. Actuator torque increases with pressure.
Not rated for steam service. Avoid rapid thermal cycling and pressure surges.
Do not use with concentrated nitric acid (>15%) in UPVC bodies.
UV exposure: Use UV-stabilized material or apply protective coating.
Actuator storage: Protect from moisture and debris. Store in clean, dry area.

Frequently Asked Questions

What is the difference between double-acting and spring-return actuators?

Double-acting actuators require air pressure to both open and close the valve. Spring-return actuators use air to open and a spring to close (or vice versa), providing fail-safe positioning in case of air supply loss. Spring-return is preferred for emergency shutdown applications.

What air pressure is required for operation?

The actuator requires filtered, lubricated air at 4–8 bar. Lower pressures may result in insufficient torque for reliable operation. Higher pressures may exceed actuator torque rating and damage the valve stem. Always verify with the actuator torque chart.

Can this valve be used for throttling control?

Yes, with a positioner and appropriate control signal (4–20 mA or 0–10 V). The pneumatic actuator provides proportional positioning, enabling accurate flow control. However, throttling service may reduce seat life compared to on-off service.

What accessories are recommended?

Common accessories include solenoid valves for remote on-off control, positioners for throttling, limit switches for position feedback, and filter-regulator-lubricator units for air preparation. Accessory selection depends on the application and control system requirements.
